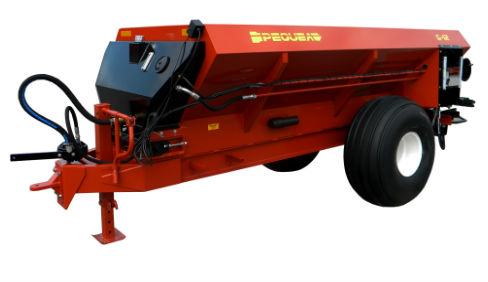

Pequea GS-10
Vineyard/Orchard Spreaders GS-10
Features
- Adjustable Axle (Standard) 6” of Height Adjustment
- Oil Cooler (Optional)
- PTO Pump (Standard) No clumsy shaft in the way
- Speed Control (Optional) Full Electronic Control
Specifications
| Specifications | GS-10 |
| Overall Height | 67" - 73" (Adjustable Axle Hanger) |
| Overall Width | 77" |
| Overall Length | 14' 7" - 15' 1" (Depending on Attachment) |
| Hopper Width (Top) | 56" |
| Hopper Length | 10' |
| Floor Width | 32" |
| Capacity | 3.2 cu yd (Struck) 5.2 cu yd (Heaped) |
| Payload | 13,000 lb |
| Empty Weight | 3,150 lb |
| Hydraulics | PTO Pump |
| Flow Control | Adjustable Flow Control for Conveyors and Spinners |
| Floor & Chain | Heavy Duty 88K Chain on 3/4" Poly Tongue and Groove Floor |
| Axle | Single with 6" Adjustable Hanger |
| Tire and Wheel | 21.5L x 16.1 x 10-Ply Tire on 8 Bolt Wheel |
| Attachments | Five Removable Options (See Photos/Videos Tab) |
| Power Requirements | 75 Hp |
