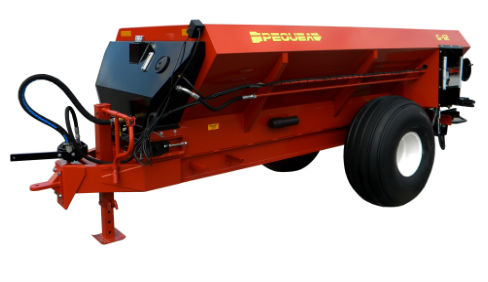

Pequea GS-12
Vineyard/Orchard Spreaders GS-12
Overview:
Spreading in Vineyards and Orchards can be tricky. With tight row spacing, it is important to select the right spreader for the job. With a single adjustable axle, five removable attachments, Pequea's G12 is designed with maneuverability and versatility in mind.
Features
- Adjustable Axle (Standard) 6” of Height Adjustment
- Oil Cooler (Optional)
- PTO Pump (Standard) No clumsy shaft in the way
- Speed Control (Optional) Full Electronic Control
Specifications
| Specifications | GS-12 |
| Overall Height | 67" - 73" (Adjustable Axle Hanger) |
| Overall Width | 77" |
| Overall Length | 16' 7" - 17' 1" (Depending on Attachment) |
| Hopper Width (Top) | 56" |
| Hopper Length | 12' |
| Floor Width | 32" |
| Capacity | 4.25 cu yd (Struck) 6.25 cu yd (Heaped) |
| Payload | 13,000 lb |
| Empty Weight | 3,370 lb |
| Hydraulics | PTO Pump |
| Flow Control | Adjustable Flow Control for Conveyors and Spinners |
| Floor & Chain | Heavy Duty 88K Chain on 3/4" Poly Tongue and Groove Floor |
| Axle | Single with 6" Adjustable Hanger |
| Tire and Wheel | 21.5L x 16.1 x 10-Ply Tire on 8 Bolt Wheel |
| Attachments | Five Removable Options (See Photos/Videos Tab) |
| Power Requirements | 75 Hp |
