Pequea GSN-8
Vineyard/Orchard Spreaders GSN-8
Overview:

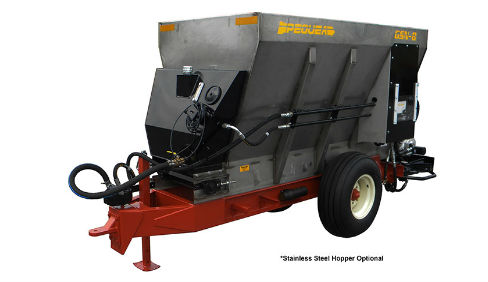

Pequea's skinniest vineyard spreader, the GSN-8, offers a compact 52" overall width for fitting in between the tightest row. But don't be fooled by the slim profile, the GSN-8 can still haul a load. An 8' steep angled hopper allows for a 4.2 cubic yard heaped capacity and up to a 7,200 lb load.
Features
- 52” Overall Width
- Rawson 6:1 Hydraulic Drive Gearbox
- Manifold with Flow Control Cleans up Hydraulics
- Speed Control (Optional) Full Electronic Control
Specifications
| Specifications | GSN-8 |
| Overall Height | 76 - 82" (Adjustable Axle Hangers |
| Overall Width | 52" |
| Overall Length | 13' 2" - 13' 8" (Depending on Attachment) |
| Hopper Width (Top) | 52" |
| Hopper Length | 8' |
| Floor Width | 24" |
| Capacity | 3.4 cu yd (Struck) 4.2 cu yd (Heaped) |
| Payload | 7,200 lb |
| Empty Weight | 2,700 lb |
| Hydraulics | PTO Pump |
| Flow Control | Adjustable Flow Control for Conveyors and Spinners |
| Floor & Chain | 667X Chain on 3/4" Poly Tongue and Groove Floor |
| Axle | Adjustable Hangers |
| Tire and Wheel | 12.5L x 15 x 10-Ply on 6 Bolt Wheel |
| Optional Attachments | Dual Spinner, Dual Conveyor, Deflector, Flicker |
