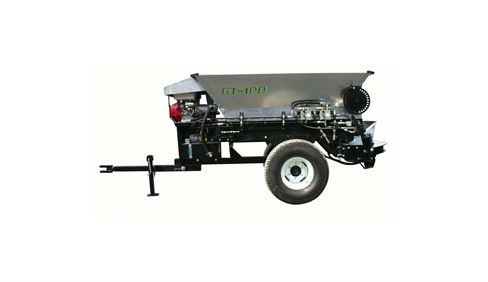

Pequea GT-100UVM for Toro® Workman™
GT-100 GT-100UVM for Toro® Workman™
Overview:
The GT-100uvm™ is our precision GT Series topdressers mounted on today's premium utility vehicles. The UVM line is a cost effective way to integrate a topdresser into your existing equipment fleet. The economical GT-100uvm™ uses the
hydraulic system of your vehicle to run the belt and spinners, while maintaining all ... + Read More
Features
- Control Box - Standard controls include electric start, independent belt and spinners and hour meter. The control box is constructed of stainless steel with a water resistant seal for longer life.
- Control Valves - Two valves adjust the speed of the floor belt and the spinners. You adjust the valves before you topdress and then use your control box to start and stop material as you approach the area on which you want to spread.
- Engine - Standard 13 HP Honda engine with electric start provides more than enough power for all spreading needs. We mount the engine in front of the box, high off the ground, eliminating unnecessary abuse from loading the machine.
- Floor - Industry first! Pequea Turf has designed one of the most innovative floor systems in the turf industry. We utilize a high quality covered lace belt with a 7/8" tracking strip down the center. In addition, we use a complete “roller floor system” which allows the belt to run smoothly for years with very little maintenance.
- Gate - Our 0-7 inches adjustable gate is easy to operate, even under load, with our innovative side access design.
- Precision- Control is key, and with Pequea Turf you have the ability to make infinite adjustments to spread pattern, depth and speed, providing the most accurate and efficient spreading for heavy or light topdressing.
- Spinners - Two 18" spinners with six paddles each spread material evenly. Spinners tilt up and down 15 degrees for heavy or light spreading. Optional 23" diameter fixed spinner set.
- The GT-100 from Pequea Turf has been tailor made for golf course management professionals. Fully adjustable gates, conveyor and spinners create precise spread depth and pattern. The GT Series are built with the same integrity and quality as our larger topdressers, the SuperSpread Series. All of our topdressers are designed to save superintendents time and labor costs.
Specifications
| Model: | GT-100uvm for Toro® Workman™ |
| Drive: | Toro Hydraulics |
| Hopper Capacity: | 28 Cubic feet (.792 cubic meters) |
| Hopper Dimension Top: Bottom: |
40" x 75" (1.13 x 2.12 meters) |
| 20" x 50" (.508 x 1.27 meters) | |
| Box Construction: | 11 Gauge welded steel |
| Standard Controls: | Vehicle hydraulics with independent belt shut off |
| Metering Gate: | Full manual adjustment up to 7" (.177 meters) |
| Spinners Standard: | Dual 18" 6 Paddle Tilting |
| Spinners Optional: | Dual 23" 6 Paddle Fixed |
| Spreading Application: | Up to 30' (9.14 meters) heavy to light |
| Conveyor Belt: | 20" (.508 meters) wide, self tracking groove and covered lace belt. |
| Optional Controls: | TurfTronic™ electric over hydraulic |
| Topdressing Speed: | Up to 9 mph (14.4 kph) depending on conditions |
| Empty Weight: | 750 lbs (340 Kg) |
| Loading Height: | 58" (1.473 meters) |
| Tire Size: | N/A |
| Hitch: | N/A |
