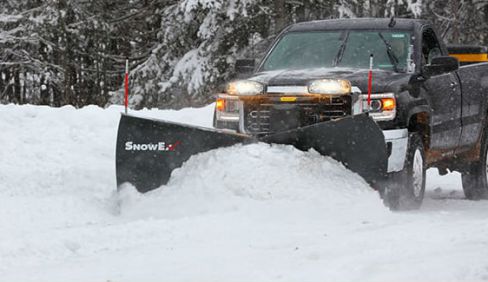

Snow Plows 8.6 HDV

Double tap to zoom



Features

Double-Acting Angle Cylinders
Durable double-acting angle cylinders push and pull the wings forward and back under the heaviest snow loads. They also can hold the wings firmly in place for optimum back dragging performance.

Snow Catcher
An integrated snow catcher helps keep snow from spilling over the top of the plow.

Adjustable Center Cutting Edge
Gap can be adjusted to help prevent snow from slipping between pivot edges.

Responsive Direct Lift
The direct lift system includes a massive cylinder that delivers a wide range of motion, impressive lifting power and high stacking performance.

Large 1-1/4” Center Pin
Center pin is robust, yet positioned to make the plow completely flat when in straight blade mode, enhancing snow rolling performance.

Easy Access Components Cover
Hydraulic components are protected with a durable poly cover that is easy to remove for quick maintenance access.

Hand-Held Controls
Choose between the POWER GRIP™ control with backlit buttons or the compact joystick control. Both feature power “on” and float LEDs and are FLEET FLEX system enabled.

FLEET FLEX Electrical System
The FLEET FLEX electrical system provides complete fleet interchangeability. Any SnowEx plow can be used on any truck.

Stand-Free Design
Because the blade is stable in the V position for either attaching or detaching, no stand is needed.

Self-Aligning Receiver Brackets
Receivers simplify attachment and are removable when not in use.

Automatixx® Attachment System
The Automatixx attachment system provides fast and easy snowplow hook-up that can all be handled from one side of the truck.

Flared Moldboard
Tall flared wings throw snow higher and farther to deliver exceptional snow clearing results.

Trip-Edge Protection
Independent trip edge protects the plow, truck and operator when encountering obstacles, and functions in any position (scoop, V, angle or straight). Because only the edge trips, snow loads are never lost.

Specifications

Model 8.6 HDV
Blade Width 8'6"
Blade Height 31" at hinge/38" at end
Angle Cylinders 1-3/4" - 11"
Plowing Width (Straight) 102" - Straight - 112.5" w/Wings
92" - Vee - 115" w/Wings
86" - Scoop - 98" w/Wings
Plowing Width (Full Angle) 90"
115" w/Wings
Approx. Weight* 972 lb
Cutting Edge 3/8"
Construction
Blade/Wing Thickness 16 ga
Reinforcement Ribs 6 vertical/ 1 angle
Trip Springs 4 steel
