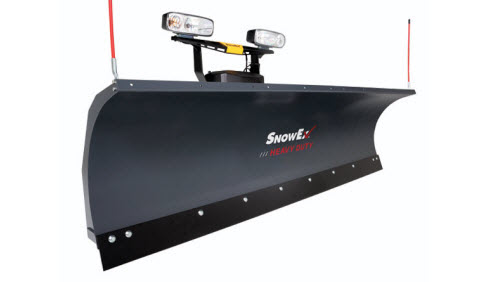

Snow Plows 8000HD

Double tap to zoom



Features

Angled Power Rib

Unique to HD Series snowplows, an angled Power Rib delivers additional muscle to an exceptionally strong unit.

Tubular Steel A-Frame

The tubular steel A-frame and large center pin provide added durability to withstand punishing conditions.

Quad Design

The massive quad design contributes to torsional strength for enhanced plowing performance and equipment reliability. This is truly the power behind your plow.

Responsive Hydraulics

Custom designed and built in-house, the snowplow's responsive, super-fast hydraulics provide quick maneuvering in the field.

Formed Base Channel

The formed base channel is the backbone of the plow, built with high-strength steel and multiple angles for extra stability.

Full-Trip Moldboard

A full-trip moldboard with four coil springs helps protect you, your plow and your truck when striking obstacles.

Steel Cutting Edge

A 6" hardened steel cutting edge provides long-lasting performance and delivers a clean scraping action.

Easy Access Components Cover

Hydraulic components are protected with a durable poly cover that is easy to remove for quick maintenance access.

Removable Receiver Brackets

Self-aligning, removable receiver brackets provide exceptional ground clearance when the snowplow is off the truck.

POWER GRIP™ Hand-Held Control

Intuitive hand-held control is designed to fit in your hand and allows for easy control of the plow with the touch of a button.

Automatixx™ Attachment System

The Automatixx attachment system provides fast and easy snowplow hook-up that can all be handled from one side of the truck.

Direct Lift

Direct lift system gives the blade a responsive full range of motion for efficient stacking and transport.

STORM SEEKER™ Headlamps

STORM SEEKER™ halogen headlamps provide a bright, smooth, wide beam pattern and absorb road vibrations.

POWERCOAT Finish

Our high-performance, multi-stage powder coat system provides a long lasting, maintenance-free finish.

SECURITY GUARD™

The SECURITY GUARD anti-theft system electronically secures your snowplow from unauthorized use when detached from the truck.

FLEET FLEX Electrical System

The FLEET FLEX electrical system provides complete fleet interchangeability. Any SnowEx plow can be used on any truck.

Specifications

Model 8000HD
Blade Width 8' 0"
Blade Height 31"
Angle Cylinders 1½"
Plowing Width (Straight) 96"
 Plowing Width (Straight) 116.5" w/Wings
Plowing Width (Full Angle) 83.3"
Plowing Width (Full Angle) 100.4" w/Wings
Approx. Weight* 747 lb
Cutting Edge 1/2" x 6"
Construction
Blade/Wing Thickness 12 ga
Reinforcement Ribs 6 vertical/2 angle
Trip Springs 4 steel
