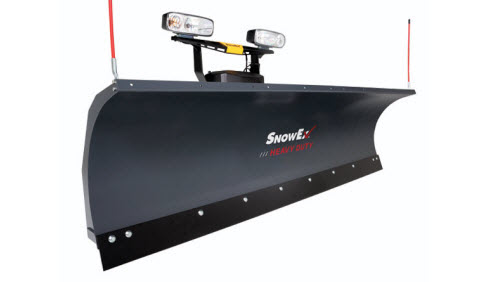

Snow Plows 8600HD
Features
Angled Power Rib
Unique to HD Series snowplows, an angled Power Rib delivers additional muscle to an exceptionally strong unit.
Tubular Steel A-Frame
The tubular steel A-frame and large center pin provide added durability to withstand punishing conditions.
Quad Design
The massive quad design contributes to torsional strength for enhanced plowing performance and equipment reliability. This is truly the power behind your plow.
Responsive Hydraulics
Custom designed and built in-house, the snowplow's responsive, super-fast hydraulics provide quick maneuvering in the field.
Formed Base Channel
The formed base channel is the backbone of the plow, built with high-strength steel and multiple angles for extra stability.
Full-Trip Moldboard
A full-trip moldboard with four coil springs helps protect you, your plow and your truck when striking obstacles.
Steel Cutting Edge
A 6" hardened steel cutting edge provides long-lasting performance and delivers a clean scraping action.
Easy Access Components Cover
Hydraulic components are protected with a durable poly cover that is easy to remove for quick maintenance access.
Removable Receiver Brackets
Self-aligning, removable receiver brackets provide exceptional ground clearance when the snowplow is off the truck.
POWER GRIP™ Hand-Held Control
Intuitive hand-held control is designed to fit in your hand and allows for easy control of the plow with the touch of a button.
Automatixx™ Attachment System
The Automatixx attachment system provides fast and easy snowplow hook-up that can all be handled from one side of the truck.
Direct Lift
Direct lift system gives the blade a responsive full range of motion for efficient stacking and transport.
STORM SEEKER™ Headlamps
STORM SEEKER™ halogen headlamps provide a bright, smooth, wide beam pattern and absorb road vibrations.
POWERCOAT Finish
Our high-performance, multi-stage powder coat system provides a long lasting, maintenance-free finish.
SECURITY GUARD™
The SECURITY GUARD anti-theft system electronically secures your snowplow from unauthorized use when detached from the truck.
FLEET FLEX Electrical System
The FLEET FLEX electrical system provides complete fleet interchangeability. Any SnowEx plow can be used on any truck.
Specifications
Model | 8600HD |
Blade Width | 8' 6" |
Blade Height | 31" |
Angle Cylinders | 1½" |
Plowing Width (Straight) | 102" |
Plowing Width (Straight) | 122.5" w/Wings |
Plowing Width (Full Angle) | 88.5" |
Plowing Width (Full Angle) | 105.6" w/Wings |
Approx. Weight* | 764 lb |
Cutting Edge | 1/2" x 6" |
Construction | |
Blade/Wing Thickness | 12 ga |
Reinforcement Ribs | 6 vertical/2 angle |
Trip Springs | 4 steel |
