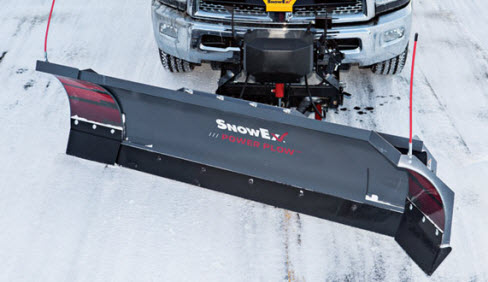

Snow Plows 8611PP

Double tap to zoom



Features

Variable Straight Blade Modes

Use compact mode for transport or plowing narrow areas, or expand the wings to make extra wide passes.

BUCKET BLADE Scoop Mode

Angle the wings forward to put the POWER PLOW in scoop mode and carry up to 30% more snow with every pass.

Windrowing Position

When angled for windrowing, the leading wing directs more snow into the moldboard to eliminate spill-off.

Cornering Performance

Fully angle while in scoop position to maintain a full load of snow when maneuvering around obstacles.

Full-Trip Moldboard

A full-trip moldboard with four coil springs helps protect you, your plow and your truck when striking obstacles.

Steel Cutting Edge

A 6" hardened steel cutting edge provides long-lasting performance and delivers a clean scraping action.

Easy Access Components Cover

Hydraulic components are protected with a durable poly cover that is easy to remove for quick maintenance access.

Pressure Relief for Wings

Plow wings feature built-in pressure relief to give upon impact.

POWER GRIP™ Hand-Held Control

Intuitive hand-held control allows independent or simultaneous wing adjustment for maximum efficiency.

Automatixx™ Attachment System

The Automatixx™ attachment system provides fast and easy plow hook-up that can all be handled from one side of the truck.

Direct Lift

Direct lift system gives the plow a responsive full range of motion for efficient stacking and transport.

STORM SEEKER™ Headlamps

STORM SEEKER™ halogen headlamps provide a bright, smooth, wide beam pattern and absorb road vibrations.

POWERCOAT Finish

Our high-performance, multi-stage powder coat system provides a long lasting, maintenance-free finish.

SECURITY GUARD™

The SECURITY GUARD anti-theft system electronically secures your plow from unauthorized use when detached from the truck.

FLEET FLEX Electrical System

The FLEET FLEX electrical system provides complete fleet interchangeability. Any SnowEx plow can be used on any truck.

Specifications

Model 8611PP
Blade Width 8' 6" 11' 0" WIDE PASS™
Blade Height 31"
Angle Cylinders 1½"
Plowing Width (Straight) 102" - Compact
118" - Bucket
132" - Wide Pass
Plowing Width (Full Angle) 94.5" - Compact
114.5" - Bucket
113" - Windrow
126"- Wide Pass
Approx. Weight* 1036 lb
Cutting Edge 1/2" x 6" blade
1/4" x 10" wing
Construction
Blade/Wing Thickness 12 ga blade
11 ga wing
Reinforcement Ribs 4
Trip Springs 4 steel
