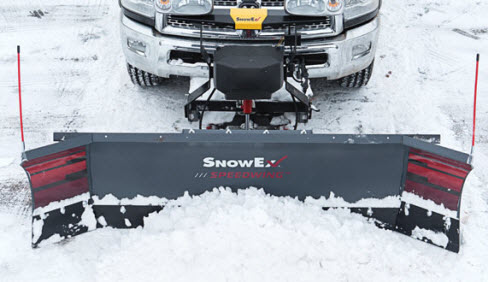

Snow Plows 8600SW

Double tap to zoom



Features

Scoop Position

When the SPEEDWING blade is facing forward, the wings automatically default to scoop mode and carry up to 30% more snow per pass.

Windrowing Position

When angled for windrowing, the leading wing directs more snow into the moldboard to allow a full pass with minimal spill-off.

Automatically Adjusting Mechanical Wings

Mechanical wings automatically adjust from scoop mode to windrow position as you angle the plow.

Straight Blade Position

For a wider straight blade, the wings can be easily pinned back.

Fully Welded Formed Torque Box

A formed torque box with four welded vertical reinforcement ribs provide unmatched torsional strength to prevent blade twisting.

Full-Trip Moldboard

A full-trip moldboard with four coil springs helps protect you, your plow and your truck when striking obstacles.

Steel Cutting Edge

A 6" hardened steel cutting edge provides long-lasting performance and delivers a clean scraping action.

Easy Access Components Cover

Hydraulic components are protected with a durable poly cover that is easy to remove for quick maintenance access.

Wings That Give

Plow wings give on impact. They are spring loaded and retract when hitting an obstacle.

POWER GRIP™ Hand-Held Control

Intuitive hand-held control allows independent or simultaneous wing adjustment for maximum efficiency.

Automatixx™ Attachment System

The Automatixx attachment system provides fast and easy plow hook-up that can all be handled from one side of the truck.

Direct Lift

Direct lift system gives the plow a responsive full range of motion for efficient stacking and transport.

STORM SEEKER™ Headlamps

STORM SEEKER halogen headlamps provide a bright, smooth, wide beam pattern and absorb road vibrations.

POWERCOAT Finish

Our high-performance, multi-stage powder coat system provides a long lasting, maintenance-free finish.

SECURITY GUARD™

The SECURITY GUARD anti-theft system electronically secures your plow from unauthorized use when detached from the truck.

FLEET FLEX Electrical System

The FLEET FLEX electrical system provides simple, common programmable controls for true fleet interchangeability.

Specifications

Model 8600SW
Blade Width 8' 7"
Blade Height 29½"
Angle Cylinders 1½"
Plowing Width (Straight) 103" - Scoop
Plowing Width (Full Angle) 93.4" - Windrow
Approx. Weight* 892 lb
Cutting Edge 1/2" x 6" blade
1/2" x 8" wing
Construction
Blade/Wing Thickness 12 ga
Reinforcement Ribs 4
Trip Springs 4 steel
