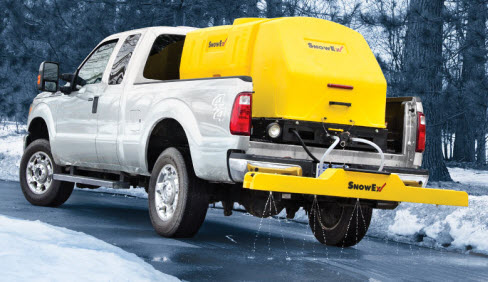

Sprayers VSS-3000

Double tap to zoom



Features

Multi-Zone Control

The VSS-2000 and VSS-3000 sprayers feature three spray zones, which are individually powered by electric pumps. The multi-zone control turns each of these zones on and off for ground spraying, curb spraying or spot spraying.

Baffled Tanks

Liquid surges place significant stress on the vehicle when stopping or turning. The baffled tanks reduce the impact, helping to prolong vehicle life.

Curb Spray Nozzles

The left and right ends of the boom include specialized curb spraying nozzles, allowing you to accurately target curb areas with brine.

3-Position Nozzles

The center boom nozzles are adjustable for three spray settings: triple stream, single stream or wide fan. These settings make the sprayers highly adaptable for a wide variety of conditions.

Work Light

The standard work light provides maximum visibility of the application, helping the operator achieve the best results.

Specifications

Model VSS-3000
Dimensions
Empty Weight 520 lb
Overall Length 94"
Overall Height 68"
Overall Width 82" boom
Floor Length 80"
Floor Width 39"
Tank Length 60"
Tank Width 42"
Operational
Capacity 300 gal
Spraying Width Up to 25'
Spraying Volume 20 gal per lane mile/acre at 10 mph
Electrical
Speed Control On/off switch for each pump
Wiring Harness Completely loomed with molded plugs
Construction
Frame Powder coated steel
Tank One-piece LLDPE safety yellow poly tank with baffles
Motors 12-volt direct-drive pumps
Mounting Straps included
Cover LLDPE cover over mechanical
