Sprayers TSA-300
Liqui Maxx™ TSA-300
Overview:
Liqui Maxx™

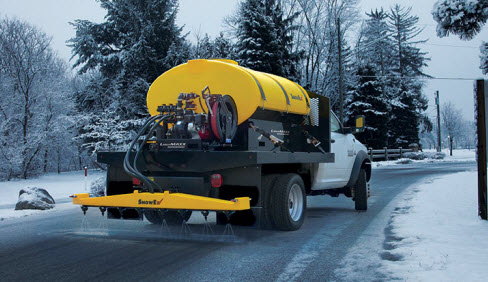

With a wide range of tank sizes available, the Liqui Maxx™ spray system is fit for use on many types of vehicles — large or small. This purpose built system can handle most standard commercial applications, making it a versatile and valuable tool in your winter maintenance toolbox.
Features
Modular Design
The tank, pump and boom assemblies are interchangeable. Users can customize the system according to their needs, and then upgrade individual components later.
Modular Design
The tank, pump and boom assemblies are interchangeable. Users can customize the system according to their needs, and then upgrade individual components later.
Elliptical Tanks
The elliptical tanks have a low center of gravity for improved vehicle control.
3-Zone Control
The left wing, right wing and center boom nozzles can be managed independently with the 3-zone control. This helps to apply liquid exactly where it’s needed without wasting material.
(HFD Pump Platform only)
Adjustable Nozzles
The boom offers three nozzle sizes on a rotating assembly, and the wing nozzles can be manually adjusted for direction and flow control.
Filtered Pump System
Engineered specifically to handle brine in harsh conditions, the wet-seal pump is properly filtered for reliable performance. It’s powered by a dependable HONDA® engine.
Poly Boom
The all-poly boom offers superior rust resistance against highly corrosive materials.
Specifications
| Model | TSA-300 |
| Empty Weight | 320 lb |
| Overall Length (w/pump) | 101" |
| Overall Height | 24" |
| Overall Width | 54" |
| Capacity | 300 gal |
| Tank | LLPDE safety yellow poly |
| Frame | Powder coated steel with 2-way fork pockets |
