Spreaders SP-2200
V-Maxx™ SP-2200
Overview:
V-Maxx™
SP-2200/SP-2400

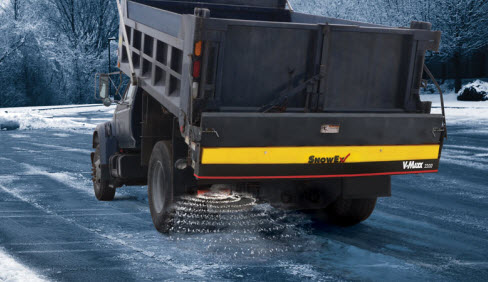

Turn your dump body into a winter workhorse with the SP-2200 under tailgate and SP-2400 replacement tailgate spreaders. These units allow you to combine the large capacity of a dump box with the efficiency of a SnowEx® auger system, providing a cost-effective solution for year-round truck use.
Features
Auger Transmission
Direct drive transmission transfers power to the auger efficiently and effectively.
Mounting Kits
Standard universal mounting kit allows spreaders to easily attach to dump bodies.
Vibrator
Attached vibrator reduces material clumping for continuous material flow.
Speed Control
Dual variable-speed control allows independent adjustment of spread pattern and material flow, and features auto reverse.
Lighting
Standard work light offers better visibility in dark or snowy conditions.
Clean-Out Tray
A hinged clean-out tray on the SP-2200 can be lowered to easily remove material buildup after use.
Specifications
| Model | SP-2200 |
| Dimensions | |
| Empty Weight | 353 lb |
| Overall Length | 18" |
| Overall Height | 20" |
| Overall Width | 96" |
| Hopper Length | 17" |
| Hopper Width | 95½" |
| Operational | |
| Spreading Width | Up to 40' |
| Electrical | |
| Speed Control | Digital, self-diagnosing dual variable-speed control with auto reverse |
| Wiring Harness | Completely loomed with molded plugs |
| Construction | |
| Frame | Powder coated steel |
| Hopper | One-piece LLDPE safety yellow poly |
| Motors | Dual 12-volt DC motor mounted in weather resistant enclosure |
| Spinner Drive Assembly | Compact, independent weather-tight patented motor transmission |
| Spinner | 12" heavy-duty urethane spinner with integral hub assembly |
| Auger Drive Assembly | Heavy-duty solid steel construction with maximum-torque motor transmission drive |
| Auger | 5" heavy-duty variable pitch steel flighting |
| Mounting | Universal mounting kit to fit most 26,000 GVWR dump bodies (some fabrication required) |
| Standard Equipment | |
| Vibrator | Standard heavy-duty 12-volt DC |
| Inverted | Patented adjustable vibrating material flow facilitator |
| Work Light | Yes |
