Spreaders SP-100
Utility SP-100
Overview:
Utility

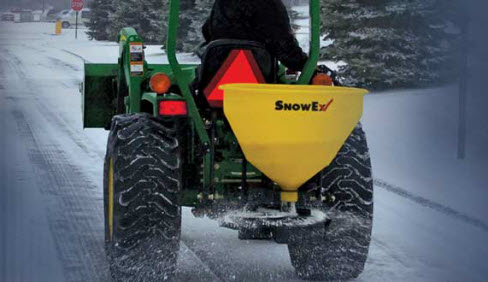

Don’t let their size fool you. The SP-100, SP-125, SP-225 and SP-325 tailgate spreaders offer big performance for smaller application needs. The SP-100 and SP-125 are designed to spread bagged ice melters and calcium chloride pellets up to 20 feet wide, while the SP-225 and SP-325 can spread bagged rock salt... + Read More
Features
Weather-Resistant Control
This weather-resistant, cab-mounted control adjusts spinner speed to help manage spread width.
Spinner Motor
The spinner motor transmission is completely electric powered. It draws electricity from the vehicle and offers plenty of power to the spreader. Also, it’s protected from the elements by a sealed drive enclosure.
Receiver Mount
Spreaders come standard with a 2-inch (51mm) receiver mount for convenient attachment to a variety of vehicles.
Electric Gate
An electric-powered gate starts and stops material flow to the spinner.
Weather Cover
Keep the spreading material safe from outside moisture with the clear, fitted weather cover.
Specifications
| Model | SP-100 |
| Dimensions | |
| Empty Weight | 75 lb |
| Overall Length | 22" |
| Overall Height | 30" |
| Overall Width | 30" |
| Hopper Length | 22" |
| Hopper Width | 30" |
| Operational | |
| Capacity (Volume) | 3.0 cu ft |
| Capacity (Weight) | 240 lb |
| Spreading Width | Up to 20' |
| Electrical | |
| Speed Control | Weather-resistant variable speed control |
| Wiring Harness | 12-gauge with molded plugs and connectors |
| Construction | |
| Frame | Powder coated steel |
| Hopper | One-piece LLDPE safety yellow poly |
| Motors | 12-volt DC motor mounted in weather resistant enclosure |
| Spinner Drive Assembly | Maximum torque transmission with hardened-steel worm and bronze gear |
| Spinner | 10" nylon/glass reinforced resin |
| Auger | N/A |
| Mounting | 2" receiver hitch is standard |
| Standard Equipment | |
| Cover | Standard |
