Spreaders VX-1500

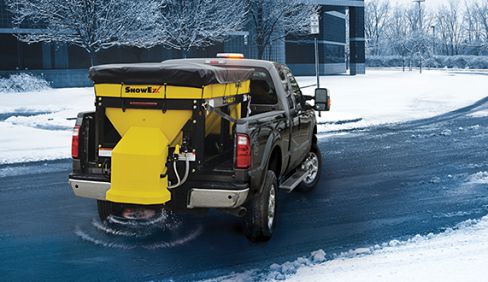

V-Maxx™ G2 VX-1500/VX-2200/VX-2200HO VX-1500
Overview:
V-Maxx™ G2 VX-1500/VX-2200/VX-2200HO
The V-Maxx™ G2 models VX-1500 and VX-2200 allow you to spread salt, sand or any combination of the two. The models feature capacities of 1.5 and 2.2 cubic yards, respectively. The VX-2200HO, also offers a 2.2-cubic-yard capacity, but is specifically designed for higher output to ... + Read More
Features
Speed Control
Dual variable-speed control allows precise adjustment of spread pattern and material flow. Features auto-reverse and plug-n-play accessory operation.
Simple Installation
Only requires a single 4-pin wire routed into the cab to install the compact control.
Spinner Assembly
Quick-connect spinner drive assembly provides easy hitch access and allows for dumping any unused material after the job is complete.
Auger Transmission
The low maintenance direct drive transmission transfers power to the auger efficiently and effectively.
High Output
The high output (HO) transmission features a gear ratio of 40:1, allowing the unit to spread 295 to 680 pounds of material per minute.
Inverted “V”
Patented vibrating baffle configuration maximizes material flow.
Fitted Tarp
A tarp fitted to the spreader's dimensions protects material from outside weather elements.
Top Screen
Top screen ensures material that enters the hopper is consistent size by breaking up any clumps and filters out large debris to ensure proper operation.
FLEET FLEX
The FLEET FLEX electrical system provides a consistent electrical platform and complete fleet interchangeability between all V-Maxx G2 spreaders.
No-Blast Startup
For maximum material placement and control, the spinner doesn’t blast upon startup, instead starting at the desired speed setting on the dial.
Vibrator
Only SnowEx can attach our high performing vibrator directly to the inverted V, which keeps material flowing.
Accessory Hub
Conveniently connect accessories directly into the fully enclosed accessory hub mounted in the back of the hopper.
Specifications
| Model | VX-1500 |
| Dimensions | |
| Empty Weight | 550 lb |
| Overall Length | 89.5" |
| Overall Height | 34" |
| Overall Width | 48" |
| Bed Length | 66" |
| Bed Width | 44" |
| Hopper Length | 78" |
| Hopper Width | 49" |
| Operational | |
| Capacity (Volume) | Stuck 1.5 cu yd Rounded 1.8 cu yd |
| Capacity (Weight) | 3,240 lb |
| Spreading Width | Up to 40' |
| Electrical | |
| Speed Control | Digital, self-diagnosing dual variable-speed controller |
| Wiring Harness | Completely loomed with molded plugs |
| Construction | |
| Frame | Powder coated steel |
| Hopper | One-piece LLDPE safety yellow poly with integral vertical rib construction |
| Motors | Dual, 12-volt DC motor mounted in weather resistant enclosure |
| Spinner Drive Assembly | Removable Spinner Assembly |
| Spinner | 12" heavy-duty urethane spinner with integral hub assembly |
| Auger Drive Assembly | Heavy-duty solid steel construction with maximum-torque motor transmission drive |
| Auger | 5" heavy-duty variable pitch steel flighting |
| Mounting | Positive locking mount with bolt-down kit and ratchet-strap assist |
| Standard Equipment | |
| Top Screen | Hinged heavy-duty steel rod construction with grid pattern |
| Cover | Fitted tarp |
| Vibrator | Standard heavy-duty 12-volt DC |
| Inverted V | Patented vibrating inverted "V" to maximize material flow |
| Brake Light | Yes |
| Work Light | Optional |
