Spreaders SP-9300
V-Maxx™ SP-9300/SP-9500 SP-9300
Overview:
V-Maxx™
SP-9300/SP-9500

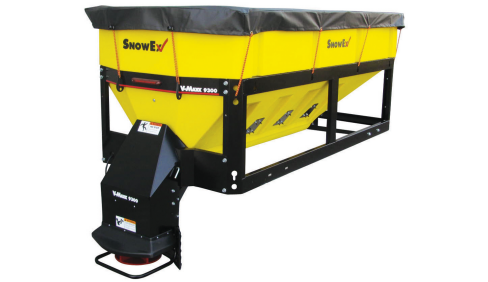

Get the big jobs done with the high performance SP-9300 and SP-9500 SnowEx® spreaders. With large capacities of 3.2 and 4.2 cubic yards to spread any combination of bulk salt and sand, these spreaders are perfect for large trucks and contractors who want to cut down on extra trips to the yard for reloading.
Features
Pre-Wet Integration
Users can choose to have the spreaders equipped with an optional pre-wet liquid tank system.
Auger Transmission
Direct drive transmission transfers power to the auger efficiently and effectively.
Speed Control
Dual variable-speed control allows independent adjustment of spread pattern and material flow, and features auto reverse.
Vibrator
Attached vibrator reduces material clumping for continuous material flow.
Inverted “V”
Patented vibrating baffle configuration maximizes material flow.
Lighting
Auxiliary LED brake light and work light offer better equipment visibility in dark or snowy conditions. The SP-9500 also features strobe lighting.
Spinner Assembly
Quick-connect spinner drive assembly provides easy hitch access.
Specifications
| Model | SP-9300 |
| Dimensions | |
| Empty Weight | 939 lb |
| Overall Length | 108" |
| Overall Height | 43" |
| Overall Width | 54" |
| Floor Length | 100" |
| Floor Width | 49.5" |
| Hopper Length | 107½" |
| Hopper Width | 54" |
| Operational | |
| Capacity (Volume) | 3.2 cu yd |
| Capacity (Weight) | 6,480 lb |
| Spreading Width | Up to 40' |
| Electrical | |
| Speed Control | Digital, self-diagnosing dual variable-speed controller with auto reverse |
| Wiring Harness | Completely loomed with molded plugs and spare circuit |
| Construction | |
| Frame | Powder coated steel |
| Hopper | One-piece LLDPE safety yellow poly with integral vertical rib construction |
| Motors | Dual, 12-volt DC motor mounted in weather resistant enclosure |
| Spinner Drive Assembly | Compact, independent weather-tight patented motor transmission (spinner assembly is modular for quick connect) |
| Spinner | 12" heavy-duty urethane spinner with integral hub assembly |
| Auger Drive Assembly | Heavy-duty solid steel construction with maximum-torque motor transmission drive |
| Auger | 7" heavy-duty variable pitch steel flighting |
| Mounting | Positive locking mount with bolt-down kit and ratchet-strap assist |
| Standard Equipment | |
| Top Screen | Hinged heavy-duty steel rod construction with grid pattern |
| Cover | Fitted tarp |
| Vibrator | Standard heavy-duty 12-volt DC |
| Inverted | Patented vibrating inverted "V" to maximize material flow |
| Brake Light | Yes |
| Work Light | Yes |
