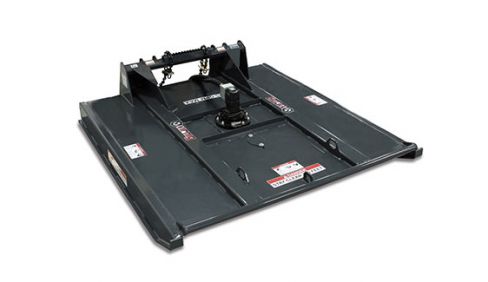

Virnig BBV60

Double tap to zoom



Features

  • Three-blade cutting system, mounted to a circular flywheel ensuring flywheel bounces off stumps rather than catching and damaging components.
  • Standard dual hydraulic pressure relief valves with dynamic braking stops the 170-220 lb flywheel in under 10 seconds.
  • Direct drive Eaton® motor rated up to 25 GPM for usage on a wide variety of skid steers.
  • Bracing along the top connected to a push bar at the front provides rigidity for pushing over thick brush and small trees.
  • ½” x 4” single side updraft blades for efficient cutting and mulching.
  • See the V50 Rotary Brush Cutter – Standard Deck for a closed deck mower with more features and options.
  • See the V40 Rotary Brush Cutter – Open Front for a similar mower with an open front.

Specifications

MODEL BBV60
Cut Width 60
Overall Cutter Width (Inches) 66
Cutter Depth (Inches) 74
Cutter Height (Inches) 21.4
Deck Height (Inches) 7.7
Minimum Cut Height (Inches) 1.9
Cutting Capacity, Diameter (Inches) 3
Top Deck Thickness (Inches) 0.19*
Side Deck Thickness (Inches) 0.25*
Recommended Flow Rate (GPM) 16-25
Approximate Weight (Pounds) 1075
Recommended Loader Capacity Greater than 1500 pounds

*Deck Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
