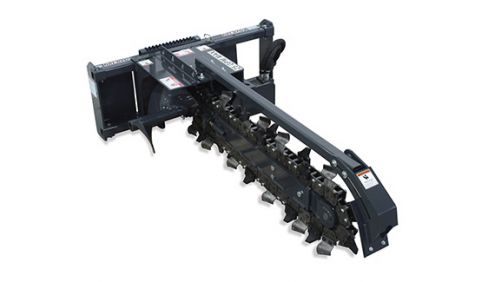

Virnig TRN48

Double tap to zoom



Features

  • Direct drive Eaton® motor reduces downtime, no chains or belts. Standard flow and high flow motor options available.
  • Standard manual side-shift allows operator to dig near structures and other objects.
  • Adjustable and removable auger clears loose soil from the trenching area.
  • Standard crumber designed to keep the trench bottom clean and smooth.
  • Chain also rotates in reverse to expel obstructions and chain tension can be quickly adjusted.
  • Multiple chain configurations available for trenching in soft, hard, rocky, or frozen ground to get the job done quicker.
  • Multiple digging depths and chain widths available. See chart below.

Specifications

MODEL TRN48
Dig Depth (Inches) 48
Overall Width (Inches) 58.5
Frame Width (Inches) 55.8
Overall Height (Inches) 25.8
Overall Length (Inches) 84.9
Side Shift Travel (Inches) 8.5 / 17.0
Auger Diameter (Inches) 17.3
Spoil Auger Discharge Reach (Inches) 20
Optimal Trenching Angle (Degrees) 60
Recommended Flow Rate Standard Flow up to 25 GPM / High Flow 25-42 GPM
Approximate Weight (Pounds) 1220*
Recommended Loader Capacity Greater than 1500 pounds

*With Terminator Chain.
