Virnig BG84

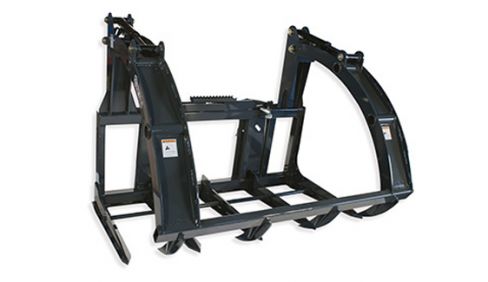

Big Bale Grapple BG84
Overview:
Two-cylinder grapple with large jaw opening allows handling of big round bales, while curved tines penetrate bales with minimal damage.
Features
- Open bottom and back gives excellent visibility and allows debris to fall through.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent, and flake resistant NitroSteel® cylinder rods.
- Greasable 1 9/16” diameter hinge pins and 1 1/4” diameter cylinder pins.
- Te on® coated bushings provides lubrication at all pivot locations.
- Machine specific hydraulic package available.
- Hay Bucket Grapple with a solid bottom also available.
Specifications
| MODEL | BG84 |
| Overall Bucket Width (Inches) | 86 |
| Bucket Depth (Inches) | 40.8 |
| Bucket Height (Inches) | 30.8 |
| Number Of Bucket Tines (With Sides) | 6 |
| Space Between Tines (Inches) | 16.3 |
| Bucket Tine Thickness (Inches) | 0.5* |
| Grapple Tine Thickness (Inches) | 0.5* |
| Number of Grapple Teeth | 4 |
| Space Between Grapple Teeth (Inches) | 19.3 |
| Grapple Jaw Opening (Inches) | 73.4 |
| Approximate Weight (Pounds) | 1150 |
| Recommended loader capacity | Greater than 2400 pounds |
*Tine Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).
