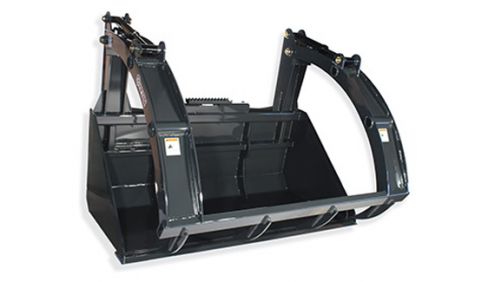

Virnig HBG72
Hay Bucket Grapple HBG72
Overview:
Two-cylinder grapple with large jaw opening allows handling of big round bales, while curved tines penetrate bales with minimal damage.
Features
- Two-cylinder grapple with large jaw opening allows handling of big round bales, while curved tines penetrate bales with minimal damage.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 9/16” diameter hinge pins and 1 1/4” diameter cylinder pins.
- Teflon® coated bushings provide lubrication at all pivot locations.
- 3/4” x 6” weld-on cutting edge with holes to accept optional edges.
- Machine specific hydraulic package available.
- Big Bale Grapple with an open bottom also available.
Specifications
| MODEL | HBG72 |
| Overall Bucket Width (Inches) | 73.5 |
| Bucket Depth (Inches) | 40 |
| Bucket Height (Inches) | 31.4 |
| Grapple Tine Thickness (Inches) | 0.5* |
| Number of Grapple Teeth | 4 |
| Space Between Grapple Teeth (Inches) | 19.3 |
| Grapple Jaw Opening (Inches) | 74.3 |
| Bucket Struck Capacity (Cubic Feet) | 27.7 |
| Bucket Heaped Capacity (Cubic Feet) | 33.2 |
| Structural Wear Bars Under Bucket (1/2″ x 4″) | 5 |
| Approximate Weight (Pounds) | 1350 |
| Recommended Loader Capacity | Greater than 2400 pounds |
