Virnig HBG84
Double tap to zoom

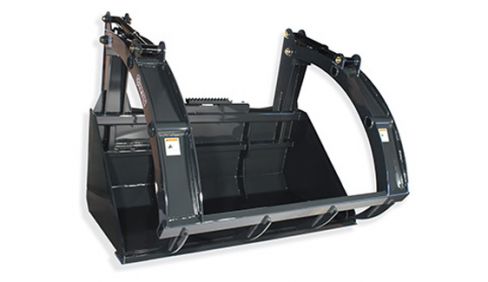

Hay Bucket Grapple HBG84
Overview:
Two-cylinder grapple with large jaw opening allows handling of big round bales, while curved tines penetrate bales with minimal damage.
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
- Two-cylinder grapple with large jaw opening allows handling of big round bales, while curved tines penetrate bales with minimal damage.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 9/16” diameter hinge pins and 1 1/4” diameter cylinder pins.
- Teflon® coated bushings provide lubrication at all pivot locations.
- 3/4” x 6” weld-on cutting edge with holes to accept optional edges.
- Machine specific hydraulic package available.
- Big Bale Grapple with an open bottom also available.
Specifications
MODEL | HBG84 |
Overall Bucket Width (Inches) | 85.5 |
Bucket Depth (Inches) | 40 |
Bucket Height (Inches) | 31.4 |
Grapple Tine Thickness (Inches) | 0.5* |
Number of Grapple Teeth | 4 |
Space Between Grapple Teeth (Inches) | 19.3 |
Grapple Jaw Opening (Inches) | 74.3 |
Bucket Struck Capacity (Cubic Feet) | 32.2 |
Bucket Heaped Capacity (Cubic Feet) | 38.8 |
Structural Wear Bars Under Bucket (1/2″ x 4″) | 5 |
Approximate Weight (Pounds) | 1450 |
Recommended Loader Capacity | Greater than 2400 pounds |
