Virnig SRGV48-CT

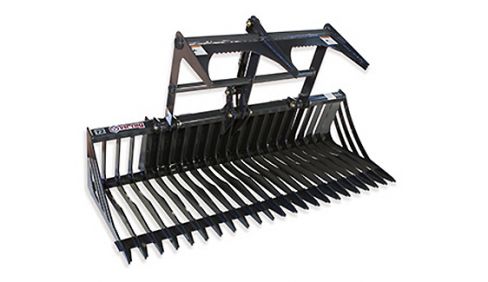

V30 Compact Tractor Skeleton Rock Grapple SRGV48-CT
Overview:
Grapple and rock bucket hybrid with an open design for more than just picking rocks.
Features
- Open bottom allows dirt to fall through the 2.9″ tine spacing.
- Every tine is constructed of one piece of steel, from tip to top cross member, to add rigidity.
- Corrosion, dent and flake resistant NitroSteel® cylinder rod made in the USA.
- Raised ridge in center of tines and notch near tips secure rocks while digging.
- Fully gusseted tine tips to strengthen tines and limit bending.
- 1” diameter greaseable grapple pins.
- Lightweight, yet durable construction perfect for compact tractors and small skid loaders.
Specifications
| MODEL | SRGV48-CT |
| Overall Bucket Width (Inches) | 50.9 |
| Bucket Depth (Inches) | 32.3 |
| Bucket Height (Inches) | 18.4 |
| Number of Tines (With Sides) | 16 |
| Space Between Tines (Inches) | 2.9 |
| Tine Thickness (Inches) | 0.375* |
| Grapple Jaw Opening (Inches) | 32.1 |
| Approximate Weight (Pounds) | 460 |
*Tine Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).
