Virnig BSGV84

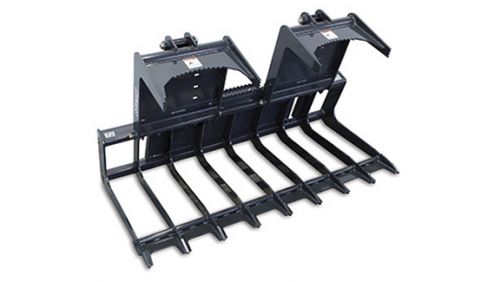

V40 Skeleton Grapple BSGV84
Overview:
Two-cylinder independent grapple with an open-sided design for hauling brush and logs. Open bottom allows dirt to fall through.
Features
- Every tine is constructed from one piece of 1/2ˮ Grade 50 steel, from tip to top brace, to add rigidity.
- NitroSteel® cylinder rods and Teflon® coated bushings on hinges.
- Known clearance issue on John Deere® G-Series loaders (330G, 331G, 332G, and 333G).
Specifications
| MODEL | BSGV84 |
| Overall Bucket Width (Inches) | 85.5 |
| Bucket Depth (Inches) | 36.9 |
| Bucket Height (Inches) | 20.3 |
| Number of Tines (With Sides) | 10 |
| Space Between Tines (Inches) | 8.9 |
| Tine and Side Plate Thickness (Inches) | 0.5* |
| Grapple Jaw Thickness (Inches) | 0.5* |
| Grapple Jaw Opening (Inches) | 35.2 |
| Approximate Weight (Pounds) | 845 |
| Recommended Loader Capacity | Less than 2400 pounds |
*Jaw and Tine Material is Grade 50 Plate (50,000 Minimum Yield Strength).
