Virnig BSRGV66

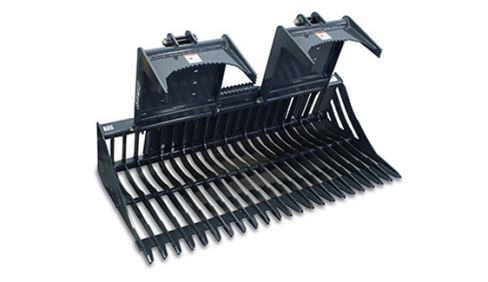

V40 Skeleton Rock Grapple BSRGV66
Overview:
Two-cylinder independent grapple with 3” tine spacing designed to pick rocks and debris and leave dirt behind.
Features
- Every other tine is constructed of one piece of steel, from tip to top brace, to add rigidity. Every tine is made from 3/8” Grade 50 steel.
- Raised ridge in center of tines (rock dam) and notch near tips secure rocks while digging.
- 2” bore, 8 3⁄8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 1/4” diameter cylinder pins and hinge pins.
- Teflon® coated bushings provide lubrication at jaw hinge.
- Known clearance issue on John Deere® G-Series loaders (330G, 331G, 332G, and 333G).
Specifications
| MODEL | BSRGV66 |
| Overall Bucket Width (Inches) | 67.6 |
| Bucket Depth (Inches) | 39.9 |
| Bucket Height (Inches) | 20 |
| Number of Tines (With Sides) | 21 |
| Space Between Tines (Inches) | 2.9 |
| Tine and Side Plate Thickness (Inches) | 0.375* |
| Grapple Jaw Thickness (Inches) | 0.5* |
| Grapple Jaw Opening (Inches) | 35.2 |
| Approximate Weight (Pounds) | 925 |
| Recommended Loader Capacity | Less than 2400 pounds |
*Jaw, Tine, and Side Plate Material is Grade 50 Plate (50,000 Minimum Yield Strength).
