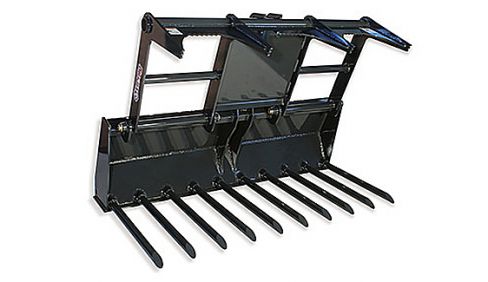

Virnig MGV172
V40 Utility Fork Grapple MGV172
Overview:
One-cylinder grapple designed to handle a variety of materials including manure, brush and debris.
Features
- High tensile strength removable, replaceable 1 3/4” diameter tines.
- No cross member at tine tips allowing better material penetration.
- 2” bore, 8 3/8” stroke cylinder featuring corrosion, dent and flake resistant NitroSteel® cylinder rod.
- Greasable 1 1/4” diameter cylinder and hinge pins.
- Teflon® coated bushings provide lubrication at jaw hinge.
- Machine specific hydraulic package to completely protect hose routing.
- Known clearance issue on John Deere® G-Series loaders (330G, 331G, 332G, and 333G).
Specifications
| MODEL | MGV172 |
| Overall Bucket Width (Inches) | 73.3 |
| Bucket Depth (Inches) | 33.5 |
| Bucket Height (Inches) | 21.5 |
| Number of Tines | 11 |
| Space Between Tines (Inches) | 5.2 |
| Tine Diameter (Inches) | 1.75* |
| Grapple Jaw Opening (Inches) | 38.0 |
| Approximate Weight (Pounds) | 950 |
| Recommended Loader Capacity | Less than 2400 pounds |
*Tine Material is 1045 CFSR Round Stock (100,000 PSI Minimum Yield Strength).
