Virnig URG66

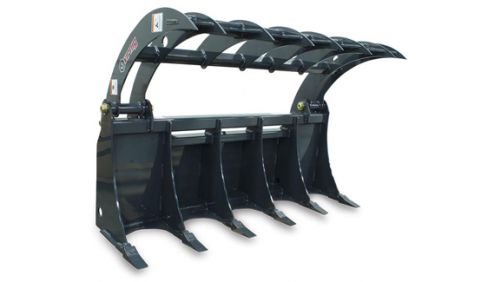

V50 Root Rake Grapple URG66
Overview:
Two-cylinder, single jaw grapple for digging, raking, piling and loading debris.
Features
- Unique design allows efficient forward and reverse operation to drag loose material into piles.
- 40” grapple jaw opening to haul large amounts of brush per load.
- Heavy-duty jaw and rake tines constructed from 3/8″ Grade 80 steel.
- Series 23 replaceable cast teeth.
- NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
- Known clearance issue with URG66 and URG72 on Takeuchi® track loaders and John Deere® G-Series loaders (330G, 331G, 332G, and 333G).
Specifications
| MODEL | URG66 |
| Overall Bucket Width (Inches) | 67.9 |
| Bucket Depth (Inches) | 22.1 |
| Bucket Height (Inches) | 25.3 |
| Number of Teeth | 6 |
| Space Between Teeth (Inches) | 10.9 |
| Grapple Jaw Thickness (Inches) | 0.375* |
| Rake Tine Thickness (Inches) | 0.375* |
| Grapple Jaw Opening (Inches) | 40 |
| Approximate Weight (Pounds) | 790 |
| Recommended Loader Capacity | Less than 2400 pounds |
*Jaw and Tine Material is Grade 80 Plate (80,000 Minimum Yield Strength).
