Virnig STG84

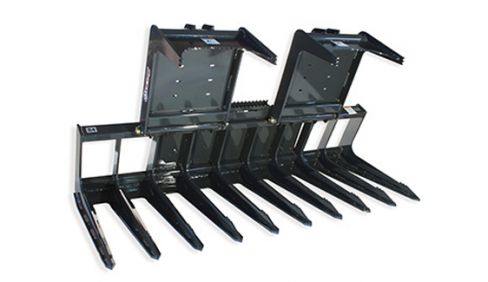

V50 Skeleton Tine Grapple STG84
Overview:
Two-cylinder independent grapple that reaches tine tips for fine work.
Features
- Every tine is constructed from one piece of 1/2ˮ Grade 80 steel, from tip to top brace, to add rigidity.
- Fully gusseted tines with no cross member allowing better material penetration without compromising strength.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 1/4” diameter cylinder pins and 1 9/16” diameter hinge pins.
- Teflon® coated bushings provide lubrication at all pivot locations.
Specifications
| MODEL | STG84 |
| Overall Bucket Width (Inches) | 86 |
| Bucket Depth (Inches) | 36.5 |
| Bucket Height (Inches) | 21.1 |
| Number of Tines (With Sides) | 10 |
| Space Between Tines (Inches) | 9.3 |
| Grapple Jaw Opening (Inches) | 36.4 |
| Approximate Weight (Pounds) | 1010 |
| Recommended Loader Capacity | Greater than 1500 pounds |
