Virnig TBG260
Double tap to zoom

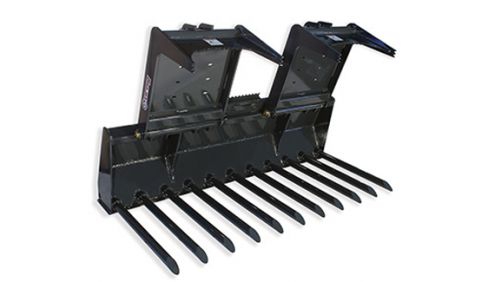

V50 Tine Fork Grapple TBG260
Overview:
Two-cylinder independent grapple designed to handle a variety of materials including manure, brush, and debris.
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
- Two 1/2ˮ thick vertical braces inside the frame for added strength.
- High tensile strength removable, replaceable 2” diameter tines.
- No cross member at tine tips allowing better material penetration.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent, and flake resistant NitroSteel® cylinder rods.
- Greasable 1 1/4” diameter cylinder pins and 1 9/16” diameter hinge pins.
- Teflon® coated bushings provide lubrication at all pivot locations.
- Known clearance issue on M-Series Bobcat® loaders when Cylinder Guards are installed and jaws are open. See FAQ for more info.
- V60 Industrial Tine Fork Grapple also available.
Specifications
MODEL | TBG260 |
Overall Bucket Width (Inches) | 61.3 |
Bucket Depth (Inches) | 37 |
Bucket Height (Inches) | 21.8 |
Number of Tines | 9 |
Space Between Tines (Inches) | 5.1 |
Tine Diameter (Inches) | 2.0* |
Grapple Jaw Opening (Inches) | 38.2 |
Approximate Weight (Pounds) | 1040 |
Recommended Loader Capacity | Less than 2400 pounds |
*Tine Material is 1045 Round (100,000 PSI Minimum Yield Strength).
