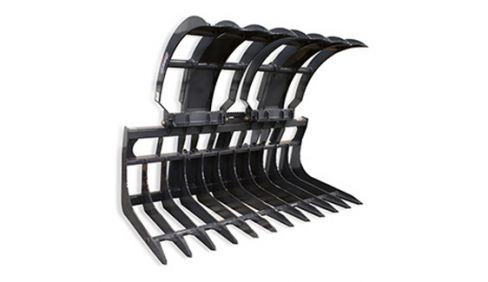

Virnig LCG72
V60 Large Capacity Skeleton Grapple LCG72
Overview:
Two-cylinder independent grapple opens over 5 feet for large jobs.
Features
- Heavy-duty 1/2″ Grade 80 steel tines and 1/2″ Grade 50 steel jaw tines.
- Open back gives excellent visibility.
- 2 1/2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 9/16” diameter hinge pins and 1 1/4” cylinder pins.
- Fully gusseted tine tips for added strength.
- Teflon® coated bushings provide lubrication at all pivot locations.
- Machine specific hydraulic package to completely protect hose routing.
- Cylinder Guards standard.
Specifications
| MODEL | LCG72 |
| Overall Bucket Width (Inches) | 73 |
| Bucket Depth (Inches) | 46 |
| Bucket Height (Inches) | 33.8 |
| Number of Tines (With Sides) | 10 |
| Space Between Tines (Inches) | 7.5 |
| Grapple Jaw Opening (Inches) | 62.8 |
| Approximate Weight (Pounds) | 1550 |
| Recommended Loader Capacity | Greater than 2400 pounds |
