Virnig HSRGV72

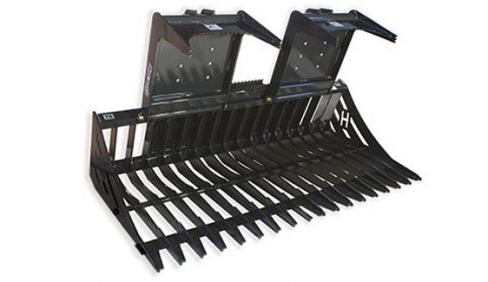

V60 Skeleton Rock Grapples HSRGV72
Overview:
Two-cylinder independent grapple with 4” tine spacing designed to pick rocks and debris and leave dirt behind.
Features
- Every tine is constructed from one piece of 1/2ˮ Grade 80 steel, from tip to top brace, to add rigidity.
- Raised ridge in center of tines (rock dam) and notch near tips secure rocks while digging.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 1/4” diameter cylinder pins and 1 9/16” diameter hinge pins.
- Teflon® coated bushings provide lubrication at all pivot locations.
- Machine specific hydraulic package to protect hose routing.
Specifications
| MODEL | HSRGV72 |
| Overall Bucket Width (Inches) | 73.5 |
| Bucket Depth (Inches) | 42.9 |
| Bucket Height (Inches) | 21.5 |
| Number of Tines (With Sides) | 17 |
| Space Between Tines (Inches) | 4 |
| Grapple Jaw Opening (Inches) | 36.1 |
| Approximate Weight (Pounds) | 1080 |
| Recommended Loader Capacity | Greater than 1800 pounds |
