Virnig ITG90

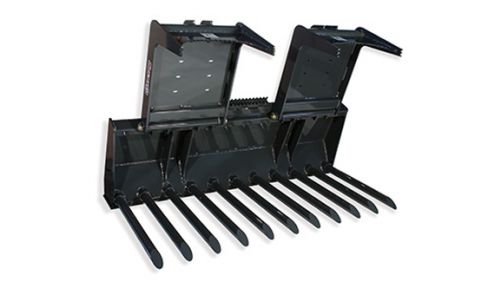

V60 Tine Fork Grapple ITG90
Overview:
Two-cylinder independent grapple designed to handle a variety of materials including manure, brush, and debris.
Features
- Four 1/2ˮ thick vertical braces inside the frame for added strength.
- High tensile strength removable, replaceable 2 1/4” diameter tines.
- No cross member at tine tips allowing better material penetration.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 1/4” diameter cylinder pins and 1 9/16” diameter hinge pins.
- Teflon® coated bushings provide lubrication at all pivot locations.
- Known clearance issue on M-Series Bobcat® loaders when Cylinder Guards are installed and jaws are open.
- Machine specific hydraulic package to completely protect hose routing.
- Known clearance issue on M-Series Bobcat® loaders when Cylinder Guards are installed and jaws are open. See FAQ for more info.
Specifications
| MODEL | ITG90 |
| Overall Bucket Width (Inches) | 91.3 |
| Bucket Depth (Inches) | 37 |
| Bucket Height (Inches) | 23.5 |
| Number of Tines | 13 |
| Space Between Tines (Inches) | 4.9 |
| Tine Diameter (Inches) | 2.25* |
| Grapple Jaw Opening (Inches) | 40.2 |
| Approximate Weight (Pounds) | 1495 |
| Recommended Loader Capacity | Greater than 2400 pounds |
*Tine Material is 1045 Round (100,000 PSI Minimum Yield Strength).
