Virnig PPFG260

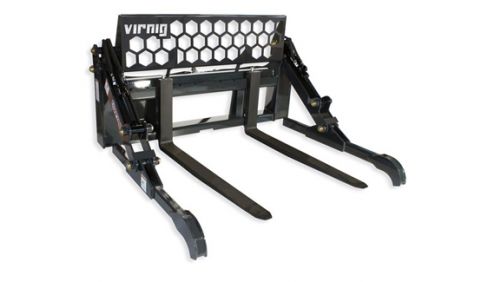

V60 Two-Cylinder Pipe Pallet Fork Grapple PPFG260
Overview:
Two-cylinder independent clamp arms open to near vertical for handling palleted material.
Features
- 54ˮ wide frame keeps long material stable.
- 48” or 60” Cascade® ITA Class II forged tines.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 1/4” diameter cylinder and hinge pins.
- Known clearance issue on John Deere® G-Series loaders (330G, 331G, 332G, and 333G).
Specifications
| MODEL | PPFG260 |
| Overall Width (Inches) | 70.8 |
| Overall Depth (Inches) | 67.5 |
| Overall Height, Closed (Inches) | 40.4 |
| Overall Height, Open (Inches) | 81.4 |
| Grapple Arm Width (Inches) | 8.3 |
| Tine Length (Inches) | 60 |
| Tine Width (Inches) | 4 |
| Tine Thickness (Inches) | 1.5 |
| Capacity (Pounds) | 6200* |
| Approximate Weight (Pounds) | 965 |
| Recommended Loader Capacity |
*With load center 24” from frame.
