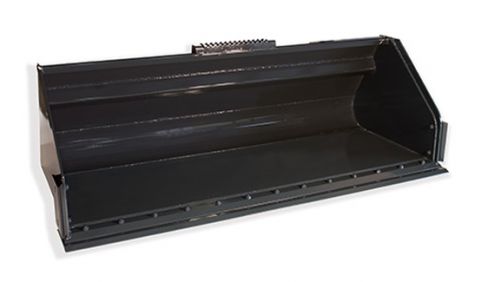

Virnig MSB78

Double tap to zoom

Top formed profile to limit spillage and rolled inside profile for easier clean out.
60 degree back angle to better hold slurry material inside the bucket.
¾” x 6” weld-on edge with holes for optional bolt-on edge.
Reversible, replaceable bolt-on side wear edges.

MODEL	MSB78
Overall Bucket Width (Inches)	80.3
Bucket Depth (Inches)	37
Bucket Height (Inches)	25.3
Struck Capacity (Cubic Feet)	20
Heaped Capacity (Cubic Feet)	24
Structural Wear Bars Under Bucket (1/2″ x 4″)	4
Approximate Weight (Pounds)	770
Recommended Loader Capacity	Greater than 1500 pounds
