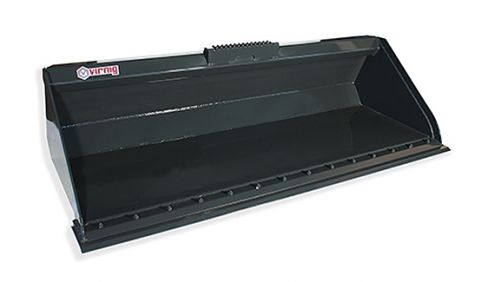

Virnig HDHV72/ HDHV72GB*

Double tap to zoom



Features

  • Stronger than the V50 Low Profile Dirt Bucket with heavier top bracing, extra wear bars underneath and an extra interior brace plate.
  • ¾” x 6″ weld-on cutting edge with holes to accept optional bolt-on or serrated bolt-on edge. See the “Options” tab for bucket edge options.
  • Pictured with optional Bolt-on Edge.

Specifications

MODELS HDHV72/ HDHV72GB*
Overall Bucket Width (Inches) 73.5
Bucket Depth (Inches) 34.6 / 35.8
Bucket Height (Inches) 20.5
Struck Capacity (Cubic Feet) 14.2
Heaped Capacity (Cubic Feet) 17
Bucket Back Angle (Degrees) 66
Shell Thickness (Inches) 0.25
Side Plate Thickness (Inches) 0.25
Structural Wear Bars Under Bucket (1/2″ x 4″) 4
Approximate Weight (Pounds) 700 / 740
Recommended Loader Capacity Greater than 2400 pounds

*Heavy-Duty Dirt Buckets / Heavy-Duty Dirt Buckets with Grading Bend + Rolled Inside.
