Virnig HDHV84/ HDHV84GB*
V60 Low Profile Dirt Bucket HDHV84/ HDHV84GB*
Overview:
Heavy-duty skid steer dirt bucket with 1/4″ Grade 50 steel construction and a low profile and extended bottom for better visibility of the cutting edge.
Features
- Stronger than the V50 Low Profile Dirt Bucket with heavier top bracing, extra wear bars underneath and an extra interior brace plate.
- ¾” x 6″ weld-on cutting edge with holes to accept optional bolt-on or serrated bolt-on edge. See the “Options” tab for bucket edge options.

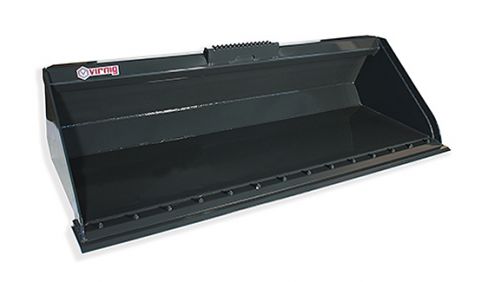

- Pictured with optional Bolt-on Edge.
Specifications
| MODELS | HDHV84/ HDHV84GB* |
| Overall Bucket Width (Inches) | 85.5 |
| Bucket Depth (Inches) | 34.6 / 35.8 |
| Bucket Height (Inches) | 20.5 |
| Struck Capacity (Cubic Feet) | 16.6 |
| Heaped Capacity (Cubic Feet) | 20 |
| Bucket Back Angle (Degrees) | 66 |
| Shell Thickness (Inches) | 0.25 |
| Side Plate Thickness (Inches) | 0.25 |
| Structural Wear Bars Under Bucket (1/2″ x 4″) | 5 |
| Approximate Weight (Pounds) | 775 / 815 |
| Recommended Loader Capacity | Greater than 2400 pounds |
