Virnig SBHV101

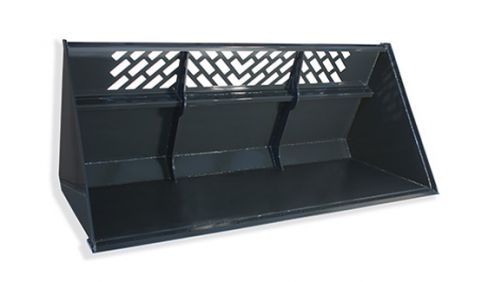

V60 Snow/Light Material Bucket SBHV101
Overview:
40.5” tall back and extended bottom allows large volumes of light material to be hauled per load.
Features
- ¼” thick bucket shell and side plates for long-term performance.
- Windows in bucket for increased visibility.
- Two vertical, 1/2” thick braces and large upper cross member for reinforcement.
- High-strength, 3/4” x 6” weld-on edge with pre-drilled holes for optional edges.
Specifications
| MODELS | SBHV101 |
| Overall Bucket Width (Inches) | 101.5 |
| Bucket Depth (Inches) | 45.5 |
| Bucket Height (Inches) | 40.5 |
| Window Height (Inches) | 12 |
| Struck Capacity (Cubic Feet) | 52.2 |
| Heaped Capacity (Cubic Feet) | 62.6 |
| Bucket Back Angle (Degrees) | 66 |
| Shell Thickness (Inches) | 0.25 |
| Side Plate Thickness (Inches) | 0.25 |
| Structural Wear Bars Under Bucket (1/2″ x 4″) | 5 |
| Approximate Weight (Pounds) | 1250 |
| Recommended Loader Capacity | Greater than 2400 pounds |
