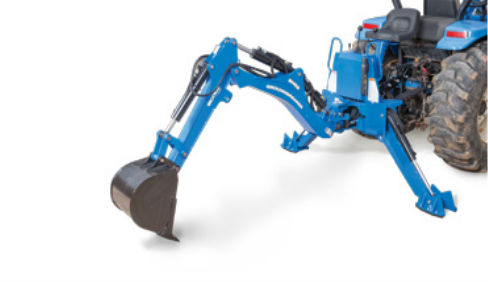

Woods BH65

New Products / Woods / Backhoes / Backhoes / BH65

Double tap to zoom

6.5 foot maximum digging depth
Compact/Utility tractor PTO HP range: 15-30
Bucket options: 9”, 12”, 16”
Swing cushioning provides smooth, superior control – even at the ends of the swing arc
Bolt-on bucket teeth are durable and easy to replace
Greasable end pins are simple to maintain and extend work life
High ramp angle and ground clearance make transporting easy
Sub-frame or 3-point hitch mounts are compatible with most loaders and undermount mowers
Available in black or paint colors to match most tractor brands
Optional mechanical thumb adds versatility to any job

Tractor Engine HP	18 - 36 hp
Tractor PTO	15 - 30 hp
Digging depth - 2' flat	78"
Digging depth - 8' flat	52"
Rear bumper	102"
Loading height	60"
Loading Reach	33.5"
Transport height	66.5"
Transport length	42"
Approx. Shipping Weight (w/o Bucket)	695 lbs
Swing arc	150°
Bucket rotation	180°
Leveling Angle	10°
Relief pressure	2,030 psi
Bucket digging force	2,800 lbs
Dipperstick digging force	1,590 lbs
Bucket widths	9", 12", 16"
Thumb	Optional mechanical
Flip-over stabilizers	Yes
Stabilizer street pads	Optional
