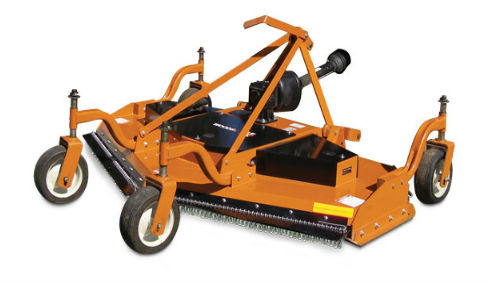

Woods RD990-X
Rear Mount RD990-X
Overview:
For those who demand a professionally groomed lawn, Woods high-performance finish mowers ensure a clean, crisp, manicured appearance year after year. Our unique rounded front, tapered-side rear discharge deck allows you to mow with better maneuverability – reducing trim time and increasing productivity. Heat-treated, a... + Read More
Features
- 90-inch cutting width, Rear Discharge
- Three-point hitch: Cat 1 and 2
- Tractor HP range: 45-75 hp
- Versatile enough to move from rough, weedy farmland to commercial lawns and landscapes, leaving behind a high-grade finish
- Features a quick change blade system, an extra-strong double B-section belt, and anti-wrap bars that prevent damage caused by material wrapped around lower spindle
- Deep deck and swinging blades ideal for rough grass
- Standard chain shielding
- ASABE quick-hitch compatibility ensures faster, easier and safer hook-ups
Specifications
| Cutting width | 90" |
| Approximate weight | 1,333 lbs. |
| Cutting height | 1.5" - 7" |
| Overall width | 97" |
| Deck material thickness | 7 gauge |
| Hitch/quick hitch compatible | Cat 1 & 2 / yes |
| Drive type | Cat 4 |
| Gearbox hp rating | 75 hp |
| PTO Horsepower | 45 - 75 hp |
| Blades | .25" x 2.5" |
| Blade tip speed | 17,000 fpm |
| Blade overlap | 2" |
| Blade spindles/bearings | 3 cast iron housings, greasable tapered roller bearings |
| Tractor PTO speed | 540 rpm |
| Driveline size | Cat 4 |
| Belt | powerband with double B-section |
| Belt adjustment | spring-loaded idler |
| Rear chain shielding | standard |
