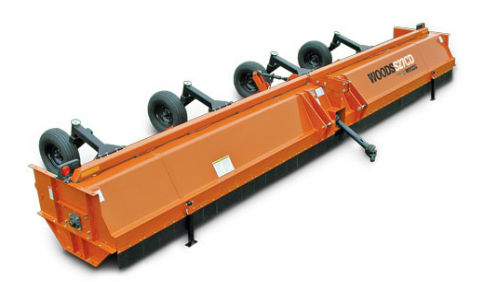

Woods S15CD

Double tap to zoom

183-inch cutting width
Minimum Tractor HP: 90 hp
Three massive tubular beams support the shredder body, for increased strength and reduced vibration
Shredder drive protected by either a 24,000 lbs. inch overrunning disc clutch or a 30,000 lbs. inch overrunning automatic clutch
High capacity gearbox with large oil volume reduces heat buildup and extends bearing and gear life
Specially designed oil seal protectors prevent vines from encasing and damaging gearbox oil seals
12.75-inch diameter flail tubes with spiral mounted knives feature increased rigidity for smoother operation
Optional end-tow transport hitch to easily move to the next job

PTO Horsepower	90 - 300 hp
Working width	183"
Overall width	190"
Cutting height	2" - 14"
Approximate weight	4,248 lbs
Tractor Engine HP	90 hp minimum
Tractor PTO speed	1,000 rpm
Gearbox rating	300 hp
Gearbox warranty	5 years - limited
Hitch type	3-point, 2-point (semi-mounted), or pull (pintle)
3-point hitch	Cat 2 & 3
Driveline size	Cat 6
Driveline system	Disc or automatic clutch
Knife options	6mm L-knives, 8mm HD-Cotton (Duraface) L-knives or 11-inch cup knives
Knife retention pattern	Bolt-on (no D-rings)
Knife speed	133 mph
Knife tip speed	11,700 fpm
Flail tube speed	1,350 rpm
Flail tube diameter (O.D.)	12.75"
Flail tube bearing diameter	2 - 3 / 16"
Hood Type	Smooth, trilateral shape
Hood/deck thickness	.18" (optional wearliner available)
End plate thickness	.25"
Shielding	Rubber belting or flaps
Wheel arm types	Rigid strut or caster
Options	End transport kit, Partial wear liner (doubles body thickness at high wear area), Swing flaps kit, Divider shield, Anti-push skid plate kit, Hydraulic center cutter kit
