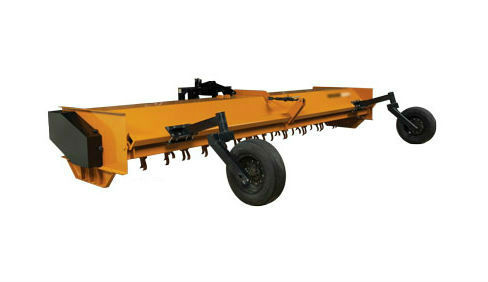

Woods S15ED

Double tap to zoom



Features

  • 180-inch cutting width
  • Tractor HP range: 120-300 hp
  • Two massive, engineered box sections to increase shredder strength and rigidity, while reducing vibration
  • High-quality gearbox with aluminum gear casing to effectively disperse and reduce heat buildup to extend bearing and gear life
  • 5-year gearbox limited warranty
  • Large diameter flail tubes help maintain balance and rigid 10.75-inch diameter flail tubes resist vibration
  • Spiral-mounted knife configuration for smoother, more efficient operation
  • Standard safety lighting kit to safely move from one field to the next
  • Optional end-tow transport hitch to easily move to the next job

Specifications

PTO Horsepower 90 - 300 hp
Tractor PTO 1,000 rpm
Cutting height 2" - 14"
Working width 198"
Number of L Knives 168
Number of C Knives 84
Lift HP Required 120 hp
Pull HP Required 90 hp
Rotor Speed 1,350 rpm
Blade tip speed 11,700 (133 mph)
Gearbox hp rating 300 hp
Gearbox warranty 6 year limited
Driveline, 3 Point Cat 6, with overrunning clutch
Driveline, Pull-type Cat 6 CV, with overrunning clutch
Hood Type Trilateral shape
Hood Thickness .18" (optional wear liner available)
End plate thickness .25"
Flail Tube Diameter 10.75"
Rotor Shaft Size 2.18" (2-3/16")
Flail Tube End Bearing 2.18" (2-3/16")
Shielding Rubber belting or flaps
Wheel Size 9.5L" x 15"
Knife Retention Bolt-on (no D-rings)
Knife Pattern Spiral
Knife Types Double-edged L (6mm), double-edged HD-cotton Duraface® L (8mm); cup or contour cup
Wheel arm types Rigid strut or caster
Optional Hitches 3-point, Cat 2 or Cat 3 (quick-hitch compatible), pull
Options End tow transport hitch, Knives (L knife, hard-faced cotton knife, and cup knife), Hitch (pull-type or 3 point mounted),
Wheel arms (rigid or swivel), Tires (foam-filled aircraft or implement), Contour knife patterned to fit row spacing
