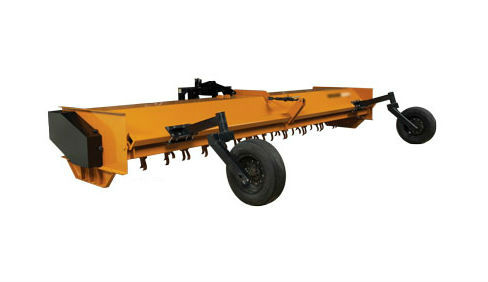

Woods S18ED
Features
- 216-inch cutting width
- Tractor HP range: 140-300 hp
- Two massive, engineered box sections to increase shredder strength and rigidity, while reducing vibration
- High-quality gearbox with aluminum gear casing to effectively disperse and reduce heat buildup to extend bearing and gear life
- Large diameter flail tubes help maintain balance and rigid 10.75-inch diameter flail tubes resist vibration
- Spiral-mounted knife configuration for smoother, more efficient operation
- Standard safety lighting kit to safely move from one field to the next
- Optional end-tow transport hitch to easily move to the next job
Specifications
PTO Horsepower | 110 - 300 hp |
Tractor PTO | 1,000 rpm |
Cutting height | 2" - 14" |
Working width | 234" |
Number of L Knives | 208 |
Number of C Knives | 104 |
Lift HP Required | 135 hp |
Pull HP Required | 110 hp |
Rotor Speed | 1,350 rpm |
Blade tip speed | 11,700 (133 mph) |
Gearbox hp rating | 300 hp |
Gearbox warranty | 6 year limited |
Driveline, 3 Point | Cat 6, with overrunning clutch |
Driveline, Pull-type | Cat 6 CV, with overrunning clutch |
Hood Type | Trilateral shape |
Hood Thickness | .18" (optional wear liner available) |
End plate thickness | .25" |
Flail Tube Diameter | 10.75" |
Rotor Shaft Size | 2.18" (2-3/16") |
Flail Tube End Bearing | 2.18" (2-3/16") |
Shielding | Rubber belting or flaps |
Wheel Size | 9.5L" x 15" |
Knife Retention | Bolt-on (no D-rings) |
Knife Pattern | Spiral |
Knife Types | Double-edged L (6mm), double-edged HD-cotton Duraface® L (8mm); cup or contour cup |
Wheel arm types | Rigid strut or caster |
Optional Hitches | 3-point, Cat 2 or Cat 3 (quick-hitch compatible), pull |
Options | End tow transport hitch, Knives (L knife, hard-faced cotton knife, and cup knife), Hitch (pull-type or 3 point mounted), Wheel arms (rigid or swivel), Tires (foam-filled aircraft or implement), Contour knife patterned to fit row spacing |
