Woods 65HB

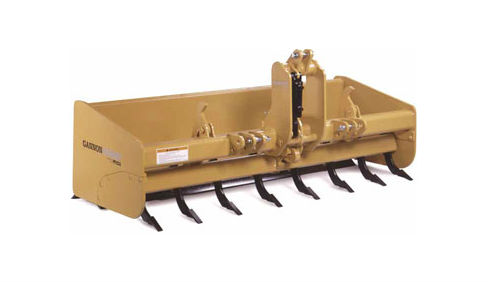

Box Scrapers 65HB
Overview:
Tackle the toughest spreading and grading jobs with Woods® and Gannon® brand box scrapers. From the reinforced steel A-frame to the tough, reversible cutting edge and replaceable scarifiers, our box scrapers deliver exceptional durability and versatility.
• Easily carve into sod and dirt with full-length, high-strengt... + Read More
Features
- 65-inch working width
- Tractor HP range: 40-80 hp
- Three-point hitch: Cat 1 and 2
- 24.5-inch height for greater capacity
- Scarify, level, grade and backfill
- Large capacity box – no gussets or bars to obstruct material boiling
- Unique maxi-load shape moldboard minimizes tractor drag
- Replaceable, heat-treated scarifier teeth
- Reversible/replaceable high-carbon cutting edges
Specifications
| Working width | 65" |
| Height | 24-.5" |
| Depth | 39.5" |
| Heaped Capacity (est) | 23.2 cu. ft |
| End plate thickness | .5" |
| Replacement End Plate Wear Bits | no |
| Number of Cutting Edges | 2 |
| Cutting Edge Size | .5" x 6" |
| Operating weight | 1,020 lbs |
| Number of Shanks | 6 |
| Tailgate | yes |
| Tractor Engine HP | 40-80 hp |
| Tractor Hitch Class* | Cat 1 and 2 |
