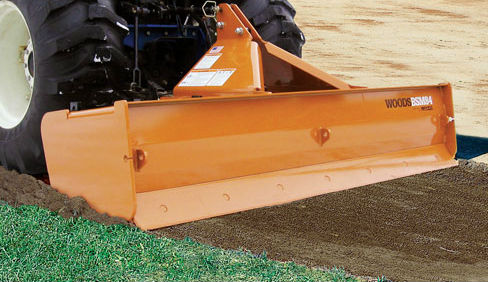

Woods BSM72

Double tap to zoom



Features

  • 72-inch working width
  • Tractor HP range: 40-65 hp
  • Three-point hitch: Cat 1
  • One-quarter-inch plate welded inside end plates to increase life
  • Full-length, high-strength double-beveled cutting edges
  • Optional floating, hinged tailgate for maximum down force on cutting edge

Specifications

Working width 72"
Capacity 13.8 cu. ft.
ASABE quick-hitch compatible yes
End plate thickness .5"
Moldboard thickness .25"
Approximate weight 680 lbs
Scarifier depth 0", 1.5", or 3" adjustable
No. of Scarifiers 6
Tailgate type fixed; floating optional
Cutting edges 2
Tractor hitch Cat 1
Tractor Engine HP 40 - 65 hp
