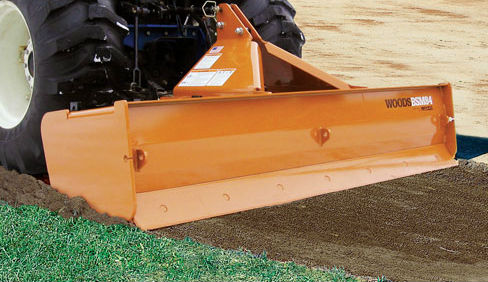

Woods BSM84
Box Scrapers BSM84
Overview:
Tackle the toughest spreading and grading jobs with Woods® and Gannon® brand box scrapers. From the reinforced steel A-frame to the tough, reversible cutting edge and replaceable scarifiers, our box scrapers deliver exceptional durability and versatility.
• Easily carve into sod and dirt with full-length, high-strengt... + Read More
Features
- 84-inch working width
- Tractor HP range: 40-65 hp
- Three-point hitch: Cat 1
- One-quarter-inch plate welded inside end plates to increase life
- Full-length, high-strength double-beveled cutting edges
- Optional floating, hinged tailgate for maximum down force on cutting edge
Specifications
| Working width | 84" |
| Capacity | 16.2 cu. ft. |
| ASABE quick-hitch compatible | yes |
| End plate thickness | .5" |
| Moldboard thickness | .25" |
| Approximate weight | 750 lbs |
| Scarifier depth | 0", 1.5", or 3" adjustable |
| No. of Scarifiers | 7 |
| Tailgate type | fixed; floating optional |
| Cutting edges | 2 |
| Tractor hitch | Cat 1 |
| Tractor Engine HP | 40 - 65 hp |
