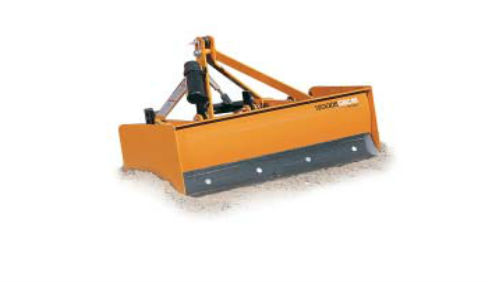

Woods GBC48
Box Scrapers GBC48
Overview:
Tackle the toughest spreading and grading jobs with Woods® and Gannon® brand box scrapers. From the reinforced steel A-frame to the tough, reversible cutting edge and replaceable scarifiers, our box scrapers deliver exceptional durability and versatility.
• Easily carve into sod and dirt with full-length, high-strengt... + Read More
Features
- 48-inch working width
- Tractor HP range: up to 25 hp
- Three-point hitch: Cat 0, Limited Cat 1 and 1
- Designed to make the most of your subcompact and compact tractors
- Hardened scarifier teeth with replaceable tips
- Reversible/replaceable high-carbon cutting edges
Specifications
| Working width | 48" |
| Capacity | 6.8 cu. ft. |
| ASABE quick-hitch compatible | yes |
| End plate thickness | .179" |
| Moldboard thickness | .188" |
| Approximate weight | 285 lbs |
| Scarifier depth | 0 - 1.5" |
| No. of Scarifiers | 4 |
| Tailgate type | fixed |
| Cutting edges | 2 |
| Tractor hitch | Cat 0, limited Cat 1 and Cat 1 |
| Tractor Engine HP | up to 25 hp |
