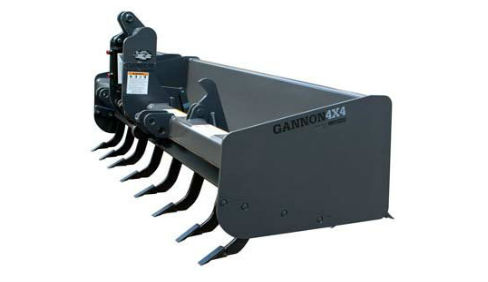

Woods MDMV92WG
Box Scrapers MDMV92WG
Overview:
Tackle the toughest spreading and grading jobs with Woods® and Gannon® brand box scrapers. From the reinforced steel A-frame to the tough, reversible cutting edge and replaceable scarifiers, our box scrapers deliver exceptional durability and versatility.
• Easily carve into sod and dirt with full-length, high-strengt... + Read More
Features
Production of the Gannon box scraper began in 1948 with the first model known as the “Earthcavator. Since that time, the Gannon® name has become synonymous with heavy-duty, construction grade box scrapers.
A variety of models are available with hydraulic scarifiers, high or low back construction to meet your host machine’s power output and desired box scraper capacity, and adjustable tailgates for fine or heavy grading. Each box scraper is manufactured from high strength materials and strong, wear-resistant cutting edges for years of dependable service.
Gannon box scrapers are the “workhorse” of the construction industry. These box scrapers are ideally designed for use on Category II industrial tractors, skip loaders and agricultural tractors ranging from 40 – 100 hp. Their rugged construction is well suited to tackle the most demanding worksite leveling jobs.
Specifications
| Working width | 92" |
| Height | 24-1/2" |
| Depth | 34-1/2" |
| Heaped Capacity (est) | 43.0 cu. ft |
| End plate thickness | 1/2" |
| Replacement End Plate Wear Bits | no |
| Number of Cutting Edges | 2 |
| Cutting Edge Size | 1/2" x 6" |
| Operating weight | 869 lbs |
| Number of Shanks | 0 |
| Tailgate | yes |
| Tractor Engine HP | 50-90 hp |
| Tractor Hitch Class* | Cat. 1 & 2 |
