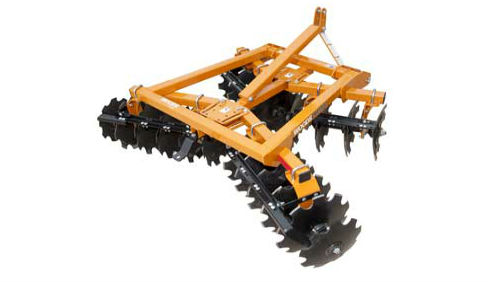

Woods DHM80

Double tap to zoom



Features

  • 80-inch working width
  • Tractor HP range: 45-75
  • Rugged, tapered frame and durable bearing hangers extend work life
  • Notched blades cut into the dirt; smooth blades leave a fine finish
  • Independent disc blade gangs adjust easily
  • Greasable, self-aligning ball bearings ensure long-lasting performance
  • Quick-hitch compatible
  • Optional mud scrapers and furrow fillers improve efficiency and productivity

Specifications

Tractor Engine HP 45-75 hp
Tractor hitch Cat 1 and 2
Working width 80"
Average Weight (depending upon blade type) 845 lbs
Average Weight per Blade 47 lbs
Disc Type notched or combo
Disc Diameter 20"
Disc quantity 18
Disc spacing 9" front, 7.5" rear
Frame Construction 3" x 3" tube
Gang Axle Diameter 1-1/8" square
Angle Adjustments 0° to 21°
Bearing Type greasable, self-aligning
Quick-hitch compatible yes
Duty Class Medium-duty
