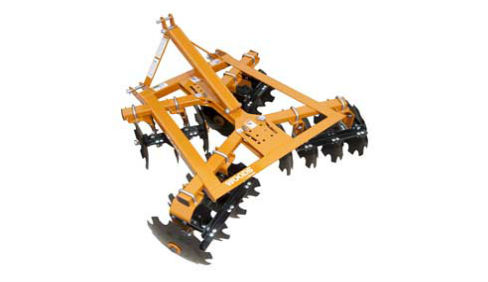

Woods DHS48
Disc Harrows DHS48
Overview:
There’s nothing like the smell of fresh-turned dirt, especially when you’re doing what you love… working the land.
Whether you’re breaking new ground for a garden, or tilling an existing nursery, food plot, vineyard or farm, Woods has the right – the best – disc harrow for your land. You will get years of productive... + Read More
Features
- 48-inch working width
- Tractor HP range: Up to 35
- Rugged, tapered frame and durable bearing hangers extend work life
- Notched blades cut into the dirt
- Independent disc blade gangs adjust easily
- Lubed-for-life ball bearings ensure long-lasting performance
- Quick-hitch compatible
- Optional mud scrapers improve efficiency and productivity
Specifications
| Tractor Engine HP | up to 35 hp |
| Tractor hitch | Cat 1, Lim. Cat 1, Cat 0 optional |
| Working width | 48" |
| Average Weight (depending upon blade type) | 390 lbs |
| Average Weight per Blade | 33 lbs |
| Disc Type | notched |
| Disc Diameter | 16" |
| Disc quantity | 12 |
| Disc spacing | 7.5" front & rear |
| Frame Construction | 3" x 3" tube and angle |
| Gang Axle Diameter | 1" square |
| Angle Adjustments | 0° to 21° |
| Bearing Type | self-aligning (lubed for life) |
| Quick-hitch compatible | yes |
| Duty Class | Standard-duty |
