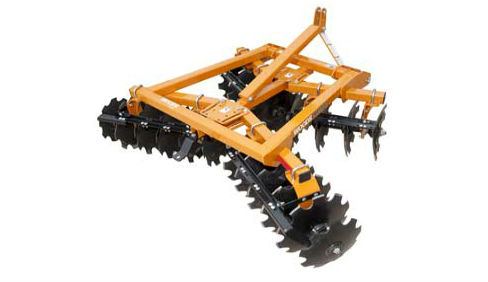

Woods DHS80

Double tap to zoom



Features

  • 80-inch working width
  • Tractor HP range: 35-55
  • Rugged, tapered frame and durable bearing hangers extend work life
  • Notched blades cut into the dirt; smooth blades leave a fine finish
  • Independent disc blade gangs adjust easily
  • Lubed-for-life ball bearings ensure long-lasting performance
  • Quick-hitch compatible
  • Optional mud scrapers and furrow fillers improve efficiency and productivity

Specifications

Tractor Engine HP 35-55 hp
Tractor hitch Cat 1
Working width 80"
Average Weight (depending upon blade type) 590 lbs
Average Weight per Blade 33 lbs
Disc Type notched; or combination smooth & notched
Disc Diameter 18"
Disc quantity 18
Disc spacing 9" front, 7.5" rear
Frame Construction 3" x 3" tube and channel
Gang Axle Diameter 1" square
Angle Adjustments 0° to 21°
Bearing Type self-aligning (lubed for life)
Quick-hitch compatible yes
Duty Class Standard-duty
