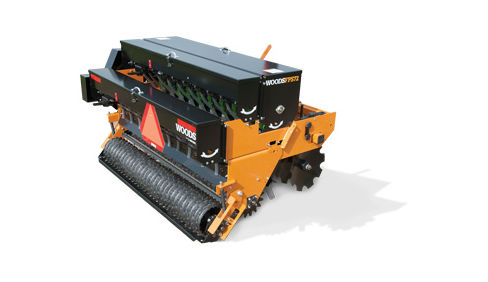

Woods FPS84

Double tap to zoom



Features

  • 84-inch working width
  • Tractor HP range: 35-85
  • Three-point hitch: Cat 1 and 2
  • Plant up to three different seeds at two different depths: Shallow broadcast and/or deeper rows
  • Three seed box choices: One cool season and two legume
  • All seed boxes can be engaged/disengaged independently, with a single lynch pin – no tools required
  • Easily and accurately adjust seeding rates with a single lever
  • Front disc blades can be angled to work the dirt more aggressively
  • ASABE quick-hitch compatibility ensures faster, easier and safer hook-ups

Specifications

Tractor Engine HP 35-85 hp
Tractor hitch Cat 1 & 2
Working width 84"
Drive type ground
Number of seed boxes available 3
Seed metering fluted seed cup
Seed box ratio 1-speed
Cool season seed box standard
Cool Season Seed Box Capacity (bushel) 7
Legume seed box 2 optional
Legume seed box capacity (bushel) 1.75
Disc blades (12) standard, 18" notched
ASABE quick-hitch compatible yes
Cast iron or nylon trailing cultipacker optional (9.5" diameter cast iron or 11" diameter nylon)
Calibration tray standard
Crank handle standard
Mud scrapers optional
Frame platform optional
