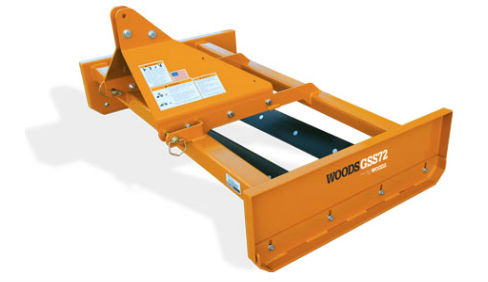

Woods GSS72
Grading Scrapers GSS72
Overview:
Ideal for jobs like leveling potholes in gravel driveways or smoothing soil berms after installing field tile.
• Heavy-duty mast plate creates more down force for smoother surface and virtually eliminates washboard effect
• Adjustable skid shoes and scarifiers increase performance
• Tall side frames hold more mate... + Read More
Features
- 71-inch working width
- Tractor HP range: 20-45 hp
- Three-point hitch: Cat 1
- 16-inch box height – one of the tallest in the industry
- Adjustable skid shoes and shanks for more precise road shaping
- Approachable leading edges and structural reinforcements keep scraper stronger, longer
- Reversible/replaceable high-carbon cutting edges
- ASABE quick-hitch compatibility ensures faster, easier and safer hook-ups
Specifications
| Tractor Engine HP | 20 - 45 hp |
| Tractor hitch | Cat 1 |
| Working width | 71" |
| Overall width | 76" |
| Overall length | 46" |
| Box Height | 16" |
| Number of scarifiers | 5 |
| Weight with scarifiers | 655 lbs |
| Weight without Scarifiers | 580 lbs |
| Scarifier adjustment | -2.5, -1.0, +0.5, +2.5 |
| Skid Shoe Adjustment | -1.0 to +0.5 |
| Lower hitch design | clevis |
| ASABE Quick Hitch Compatible | yes |
